MidNite Solar Disconnecting Combiner Enclosure for 8 Strings NEMA Type 4X Aluminum - MNPV6HV-DISCO 4X

Product Description
$612.00 $849.00
Maximum quantity available reached.

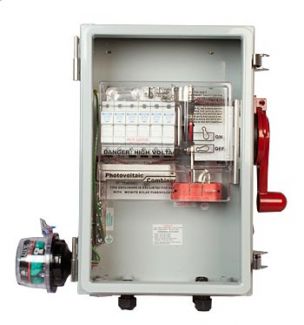

MNPV6HV Disco 4X PV Disconnecting Combiner, 3 poles, 125 amp busbars, 100 amp load break rated switch. Picture shows included front cover removed. For additional information, see the PDF links below.

Features:

  • Disconnect has built in shunt trip with positive feedback
  • Birdhouse compatible
  • Optional PV connected power supply
  • Optional AC connected power supply for redundancy
  • See thru deadfront & color coded busbar guards included
  • Nema 4X aluminum enclosure (no rust, won't turn to dust)
  • Fuseholders included
  • Load Break Rated
  • 15a/600v fuses included
  • MNSPD600 Lightning Arrestor included
  • 90o C connections
  • 1/2" strain reliefs and hole plugs included
  • Meets NEC 2011
  • Size: 16.8"L x 12.4"W x 5.6"D
  • Box Size: 21"L x 17"W x 6"D
  • Weight: 14 Lbs
  • MN Part Number: MNPV6HV-Disco Nema 4X Combiner

  • Documents:

    Datasheet1

    Datasheet2

    Datasheet3
