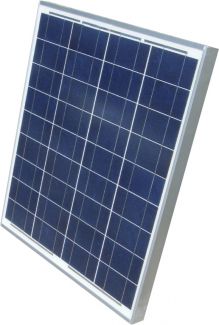

Solartech Solar Panel 65W 12V - SPM065P-BP

Product Description
$176.15
Maximum quantity available reached.

This is a 65W 12V solar panel from the Solartech J-Series product line, and are designed to be a drop-in replacement for BP brand solar collectors, with Class 1 Div. 2 (C1D2) hazardous location certification from ETL.

Solartech photovoltaic J-Series Modules are constructed with high efficient polycrystalline solar cells and produce higher output per module than others in it class. This industrial grade module is an industry-standard among various industry professionals.

Features:

  • Drop-in replacement for BP panels.
  • Accessible junction box with 4-1/2 knockout for ease of installation.
  • (EVA) with TPT cushions the solar cells within the laminate and ensures the operating characteristics of the solar cells under virtually any climatic condition
  • Rigid anodized aluminum frame and low iron tempered glass
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology
  • Proven superior field performance
  • Tight power tolerance
  • Qualifications and Certifications:
    -UL No.: E330673 (UL 1703 certification)
    -TUV No.:0000022551 (TUV certification)
    -IEC No.: C1-ASN07001 (IEC61215)
    -ETL No.:4001057 (ETL Class I, Division 2, Groups C and D certification)

    For additional information, please see the PDF Spec Sheet linked below.



  •

    Peak Power (Pmpp) 65 W Cell Type: Polycrystalline
    Peak Power Voltage (Vmpp) 17.6 V Cell Dims: 156mmx78mm
    Peak Power Current (Impp) 3.69 A Length: 31.1 in.
    Open Circuit Voltage (Voc) 21.7 V Width: 26.5 in.
    Short Circuit Current: 3.99 A Depth incl. jbox: 1.97 in.
    Max. System Voltage: 1000 VDC Depth excl. jbox: 1.97 in.
    Weight: 15.4 lbs Nominal Voltage: 12 V
    Box Quantity: 1 Limited Warranty: 25 Years
    Max Series Fuse: 10 A



    Documents:
    Solartech Solar Panel 65W 12V - SPM065P-BP Specsheet
