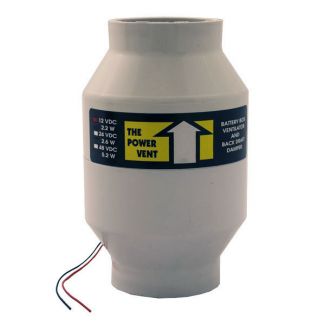

Power Vent Battery Box Ventilator 12V - 085-08205

Product Description
$78.00 $94.00
Maximum quantity available reached.

The Power Vent provides positive venting of a battery box. The battery box fan's built in back draft damper stops cold outside air from entering the battery box. The Power Vent can be easily installed in a battery box vent system using 2 inch PVC pipe. Many inverters and charge controllers have a 12 volt powered relay that can power the Power Vent. Power consumption is 3 watts. Air volume movement is 4 to 6 cfm. 24 and 48-volt fans are also available. The solar battery box venting fan is replaceable.

*The POWER VENT is designed around typical home power systems with battery banks under 2,200 amp hours and charge rates under 150 dc amperes. Systems larger than this can produce more hydrogen gas than the expel rate of the POWER VENT which operates in the 5 to 8 cubic foot per minute range. Two battery box fans may be used for higher volume.

Documents:
Datasheet1

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
T.M.
So far So good.

This battery box ventilator replaced my original which was same manufacture, make and model. The original lasted for maybe 18 months, I am hoping to get more longevity out of this one. The new ventilator came with a inline fuse, which the original did not. It is quit possiable the solar contractor failed to install the inline fuse with the original ventilator. It is very difficult to find quality contractors of ANY kind these days. If you can, just do it yourself.

J
J.A.
Power Vent Battery Box Ventilator 12V

received item broken, appeared to be from manufacturing. Shipping box was in good condition internal shaft in fan unit was not attached to the motor. Solar Panel Store was very responsive and shipped me out a new one.
