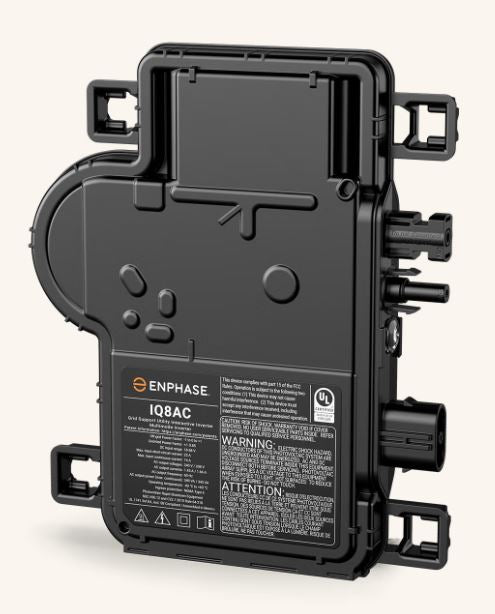

Enphase IQ8AC Microinverter 366W - IQ8AC-72-M-US

Product Description
$273.50
Maximum quantity available reached.

Our newest IQ8 Series Microinverters are the industry’s first microgrid-forming*, software-defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is our proprietary application specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55 nm technology with high-speed digital logic and has superfast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.

Part of the Enphase Energy System, IQ8 Series Microinverters integrate with the IQ Battery, IQ Gateway, and the Enphase App monitoring and analysis software.

IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.

Connect PV modules quickly and easily to the IQ8 Series Microinverters that have integrated MC4 connectors.

IQ8 Series Microinverters are UL listed as PV rapid shutdown equipment and conform with various regulations when installed according to the manufacturer’s instructions.

*Only when installed with IQ System Controller 2, meets UL 1741.

Technical Specifications
Peak output power: 366 VA @240Vac, 350 VA @208Vac
Input power: 295 - 500 W
Maximum continuous output power: 349 VA @240Vac, 345 VA @208Vac
Operating range: 18 – 58 V

Enphase IQ8AC Microinverter 366W - IQ8AC-72-2-US Details:
Lightweight and compact with plug-and-play connectors
Power line communication (PLC) between components
Faster installation with simple two-wire cabling
Produces power even when the grid is down*
More than one million cumulative hours of testing
Class II double-insulated enclosure
Optimized for the latest high-powered PV modules
Complies with the latest advanced grid support
Remote automatic updates for the latest grid requirements
Configurable to support a wide range of grid profiles
Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
*Only when installed with IQ System Controller 2, meets UL 1741.

Documents:
Enphase IQ8AC Microinverter 349W - IQ8AC-72-M-US Data Sheet
Enphase IQ8AC Microinverter 349W - IQ8AC-72-M-USOperation Manual and Install Guide
