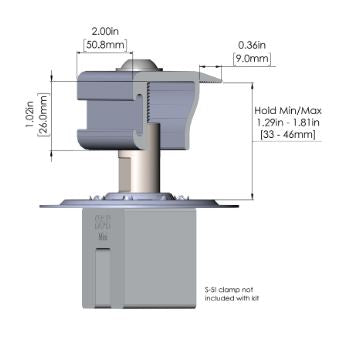

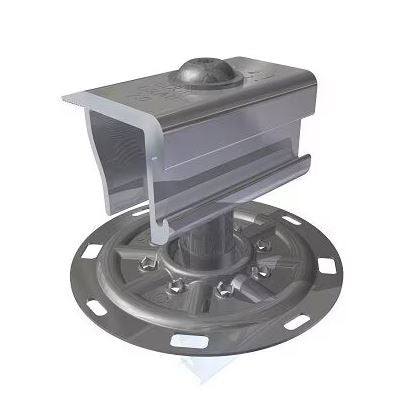

{"id":2047095013465,"title":"S-5! S-5-PV Kit 2.0 EdgeGrab Metal Roof End Clamp (4 Pack)","handle":"s-5-pv-kit-2-0-edge-grab-s-5-pv-kit-2-0-edge","description":"\u003cdiv class=\"ui-tabs-panel ui-corner-bottom ui-widget-content\" id=\"tabs-1\" role=\"tabpanel\"\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eThe S-5! S-5-PV Kit 2.0 EdgeGrab is a penetration-free, rail-free mounting hardware kit designed for end-of-row attachment of PV modules to standing seam metal roofs. This universal end-clamp kit provides a secure, leak-free mounting solution without jeopardizing roof material or weather-tightness warranties. Featuring an 8mm bolt and stainless steel mounting disc, it accommodates PV frame thicknesses from 1.18\" to 1.81\" (30–46 mm) and pairs with S-5! clamps or brackets for a complete, UL2703-certified assembly. Designed to match the 30-year service life of both standing seam metal roofs and crystalline PV modules, the pre-assembled EdgeGrab kit simplifies installation and reduces labor costs. Sold in convenient 4-pack packaging.\u003c\/span\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eKey Features \u0026amp; Benefits\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePenetration-Free Attachment:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eEliminates drilling holes in the roof, preserving weather-tightness warranties and preventing potential leak points for a truly leak-free solar assembly.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eUniversal End-Clamp Design:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eBonding and mounting universal end-clamp for PV module frames from 1.18\" to 1.81\" (30–46 mm), providing versatility across different module brands and thicknesses.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePre-Assembled \u0026amp; One-Tool Installation:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003ePre-assembled kit with thread lock on the standoff bolt allows for faster installation using only one tool (T-30 Torx bit tip provided), eliminating a step required in the previous version.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eImproved Grounding:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eMore aggressive bonding teeth on the PV Disk ensure a secure ground path, eliminating the need for lugs or wire except to connect strings and ground the system.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eUL2703 Certified:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eRigorously tested and certified to UL2703 standards for bonding and grounding, ensuring safety and code compliance.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eStainless Steel Mounting Disc:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eDurable stainless steel disc provides secure attachment and long-lasting corrosion resistance.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible Service Life:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eDesigned to match the 30-year life expectancy of both standing seam metal roofs and crystalline PV modules, creating a truly long-term, integrated renewable energy system.\u003c\/span\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eTechnical Specifications\u003c\/span\u003e\u003c\/h3\u003e\n\u003cdiv class=\"ds-scroll-area ds-scroll-area--show-on-focus-within ds-scroll-area--enabled _1210dd7 c03cafe9\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cspan class=\"\"\u003eSpecification\u003c\/span\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cspan class=\"\"\u003eDetail\u003c\/span\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eManufacturer\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eS-5! (Metal Roof Innovations, Ltd.)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eModel\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eS-5-PV Kit 2.0 EdgeGrab\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePackage Quantity\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e4 kits per pack\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible PV Frame Thickness\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e1.18\" – 1.81\" (30 – 46 mm)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eRecommended Torque (Low Profile Bolt)\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e120 – 130 in-lbs (13.6 – 14.7 Nm)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eMax PV Module Fuse Rating\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e25A or less (for UL 2703 Listed assemblies)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible Roof Types\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eMost standing seam metal roofs and exposed fastener roofs (with S-5! brackets)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eMounting Disc Material\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eStainless steel\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCertifications\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eUL2703 Certified for bonding and grounding\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eProduct Documents\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eInstallation Manual: \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/6003\/5417\/files\/pvkit-2-0-installation.pdf?v=1786475411\"\u003eDownload PDF\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eBrochure: \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/6003\/5417\/files\/pvkit-2-0-brochure.pdf?v=1786475411\"\u003eDownload PDF\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e","published_at":"2018-11-22T11:24:18-07:00","created_at":"2019-03-26T14:50:35-06:00","vendor":"S-5","type":"Mounts \u0026 Racking - Small PartsMounts \u0026 Racking - Small Parts","tags":["All products","Brand_S-5","feed-sl-9","Roof Mounting Components","S-5! Parts"],"price":5435,"price_min":5435,"price_max":5435,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":21224867364953,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"S-5-PV Kit 2.0 Edge","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"S-5! S-5-PV Kit 2.0 EdgeGrab Metal Roof End Clamp (4 Pack)","public_title":null,"options":["Default Title"],"price":5435,"weight":1814,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.solarpanelstore.com\/cdn\/shop\/files\/S-5_S-5-PVKit2.0EdgeEndClamp_2Pack.jpg?v=1755106425","\/\/www.solarpanelstore.com\/cdn\/shop\/products\/S-5-PVKIT2.0-EdgeGrab.JPG?v=1755106425"],"featured_image":"\/\/www.solarpanelstore.com\/cdn\/shop\/files\/S-5_S-5-PVKit2.0EdgeEndClamp_2Pack.jpg?v=1755106425","options":["Title"],"media":[{"alt":"S-5! S-5-PV Kit 2.0 EdgeGrab Metal Roof End Clamp (2 Pack)","id":36774427853039,"position":1,"preview_image":{"aspect_ratio":1.005,"height":402,"width":404,"src":"\/\/www.solarpanelstore.com\/cdn\/shop\/files\/S-5_S-5-PVKit2.0EdgeEndClamp_2Pack.jpg?v=1755106425"},"aspect_ratio":1.005,"height":402,"media_type":"image","src":"\/\/www.solarpanelstore.com\/cdn\/shop\/files\/S-5_S-5-PVKit2.0EdgeEndClamp_2Pack.jpg?v=1755106425","width":404},{"alt":"S-5-PV KIT 2.0 Edge Grab - S-5-PV Kit 2.0 Edge","id":677902352524,"position":2,"preview_image":{"aspect_ratio":0.939,"height":362,"width":340,"src":"\/\/www.solarpanelstore.com\/cdn\/shop\/products\/S-5-PVKIT2.0-EdgeGrab.JPG?v=1755106425"},"aspect_ratio":0.939,"height":362,"media_type":"image","src":"\/\/www.solarpanelstore.com\/cdn\/shop\/products\/S-5-PVKIT2.0-EdgeGrab.JPG?v=1755106425","width":340}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"ui-tabs-panel ui-corner-bottom ui-widget-content\" id=\"tabs-1\" role=\"tabpanel\"\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eThe S-5! S-5-PV Kit 2.0 EdgeGrab is a penetration-free, rail-free mounting hardware kit designed for end-of-row attachment of PV modules to standing seam metal roofs. This universal end-clamp kit provides a secure, leak-free mounting solution without jeopardizing roof material or weather-tightness warranties. Featuring an 8mm bolt and stainless steel mounting disc, it accommodates PV frame thicknesses from 1.18\" to 1.81\" (30–46 mm) and pairs with S-5! clamps or brackets for a complete, UL2703-certified assembly. Designed to match the 30-year service life of both standing seam metal roofs and crystalline PV modules, the pre-assembled EdgeGrab kit simplifies installation and reduces labor costs. Sold in convenient 4-pack packaging.\u003c\/span\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eKey Features \u0026amp; Benefits\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePenetration-Free Attachment:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eEliminates drilling holes in the roof, preserving weather-tightness warranties and preventing potential leak points for a truly leak-free solar assembly.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eUniversal End-Clamp Design:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eBonding and mounting universal end-clamp for PV module frames from 1.18\" to 1.81\" (30–46 mm), providing versatility across different module brands and thicknesses.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePre-Assembled \u0026amp; One-Tool Installation:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003ePre-assembled kit with thread lock on the standoff bolt allows for faster installation using only one tool (T-30 Torx bit tip provided), eliminating a step required in the previous version.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eImproved Grounding:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eMore aggressive bonding teeth on the PV Disk ensure a secure ground path, eliminating the need for lugs or wire except to connect strings and ground the system.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eUL2703 Certified:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eRigorously tested and certified to UL2703 standards for bonding and grounding, ensuring safety and code compliance.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eStainless Steel Mounting Disc:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eDurable stainless steel disc provides secure attachment and long-lasting corrosion resistance.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible Service Life:\u003c\/span\u003e\u003c\/strong\u003e\u003cspan class=\"\"\u003e\u003cspan\u003e \u003c\/span\u003eDesigned to match the 30-year life expectancy of both standing seam metal roofs and crystalline PV modules, creating a truly long-term, integrated renewable energy system.\u003c\/span\u003e\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eTechnical Specifications\u003c\/span\u003e\u003c\/h3\u003e\n\u003cdiv class=\"ds-scroll-area ds-scroll-area--show-on-focus-within ds-scroll-area--enabled _1210dd7 c03cafe9\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003e\u003cspan class=\"\"\u003eSpecification\u003c\/span\u003e\u003c\/th\u003e\n\u003cth\u003e\u003cspan class=\"\"\u003eDetail\u003c\/span\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eManufacturer\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eS-5! (Metal Roof Innovations, Ltd.)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eModel\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eS-5-PV Kit 2.0 EdgeGrab\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003ePackage Quantity\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e4 kits per pack\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible PV Frame Thickness\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e1.18\" – 1.81\" (30 – 46 mm)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eRecommended Torque (Low Profile Bolt)\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e120 – 130 in-lbs (13.6 – 14.7 Nm)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eMax PV Module Fuse Rating\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003e25A or less (for UL 2703 Listed assemblies)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCompatible Roof Types\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eMost standing seam metal roofs and exposed fastener roofs (with S-5! brackets)\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eMounting Disc Material\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eStainless steel\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e\u003cspan class=\"\"\u003eCertifications\u003c\/span\u003e\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cspan class=\"\"\u003eUL2703 Certified for bonding and grounding\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003chr\u003e\n\u003ch3\u003e\u003cspan class=\"\"\u003eProduct Documents\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eInstallation Manual: \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/6003\/5417\/files\/pvkit-2-0-installation.pdf?v=1786475411\"\u003eDownload PDF\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp class=\"ds-markdown-paragraph\"\u003e\u003cspan class=\"\"\u003eBrochure: \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/6003\/5417\/files\/pvkit-2-0-brochure.pdf?v=1786475411\"\u003eDownload PDF\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e"}
