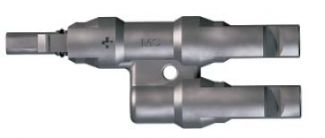

Multi-Contact MC4 Branch Connector 1 Female-to-2 Male - PV-AZS4

Product Description
$14.00
Maximum quantity available reached.

Multi-Contact MC4 Branch Connector. The PV-AZS4 is a handy 1F-2M(1 Female to 2 Male) MC4 water proof Y-Connectors (or branch connector) makes it possible to parallel wire PV modules with MC4 (locking-type) output wires. Maximum current allowed through connectors is 30A.

This branch connector has (1) Female to (2) Male.



Documents:

Datasheet1
