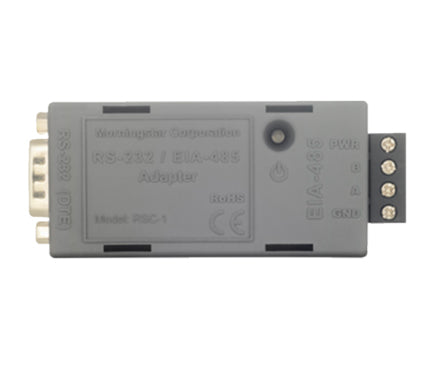

Morningstar EIA-485 to Serial Adaptor - RSC-1

Product Description
$82.90 $87.00
Maximum quantity available reached.

The Morningstar RSC-1 is an EIA-485 to Serial Communications Adaptor which enables networking capability by converting a charge controller or inverter’s RS-232 port to a standard EIA-485 serial connector. The RSC-1 may be used with any Morningstar controller or inverter equipped with an RS-232 port.

All data is transmitted in the form of MODBUS protocol. This industry standard was chosen for its robust design and high level of compatibility with a variety of equipment. Each Morningstar product has its own MODBUS specification (see our website for full details) that covers the data available from each products specific functions.

By converting to EIA-485, the RSC-1 allows up to 128 Morningstar products to communicate on the same communication bus and over much greater distances. Typical configurations include:

  • Networking several TriStar and/or TriStar-MPPT controllers
  • Adding Morningstar’s PC Meterbus Adapters (MSC) for use with an RJ-11 port in multi-device networks.
  • Adding Morningstar’s Relay Driver to a network
  • Integrating any compatible Morningstar product into an existing EIA-485 network, such as those used by industrial control or SCADA systems

Datasheet

User Manual
