Solarland Small Panel Mount Adjustable Flat or Pole - SLB-0112

Product Description
$36.15
Maximum quantity available reached.

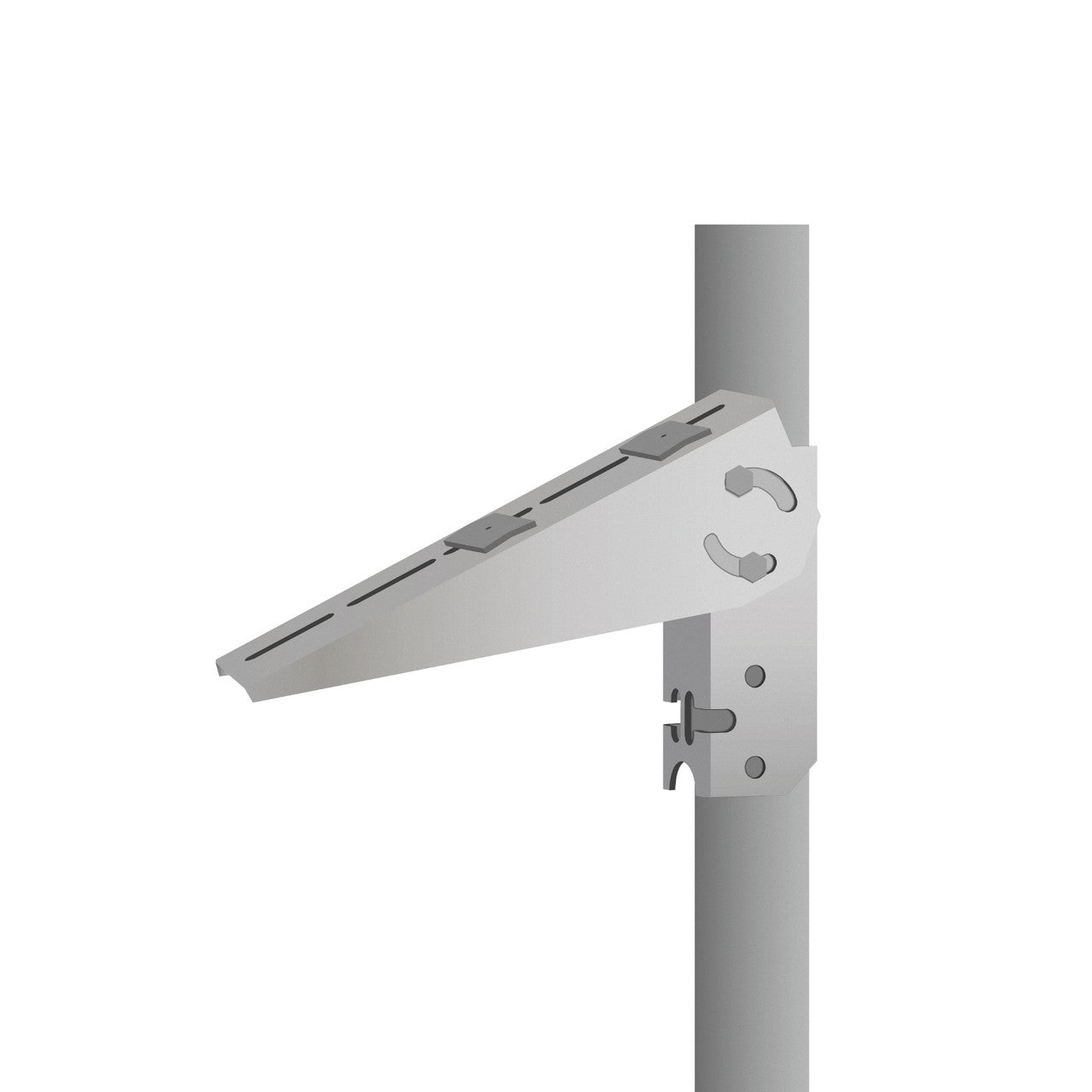

A versatile rack to hold small solar modules, mounts to a pole or flat surface. This rack will mount to a 2 1/2" up to 12" pole using hose clamps or U-bolts (not included). By turning the mounting bracket around you can lag bolt this onto a flat horizontal (roof) or vertical (wall) surface (as pictured). 90 degrees of adjustability.

Maximum panel mounting hole spacing- 20.25 in.

The panel bracket bolts to the panel using 5/16', hardware for Bp modules and 114" hardware for all other modules. The panel should be placed tight against the tapered end of the panel bracket. Some modules will not span the entire bracket length. The panel bracket bolts to the mounting bracket using 5/16" hardware' When mounting to flat surfaces bolts or lag screws should be used (not included). Pole mounting can be accomplished using U-bolts with retaining clamps or with hose clamps (not included). Solarland P/N: SLB-0112



Documents:

Datasheet1
