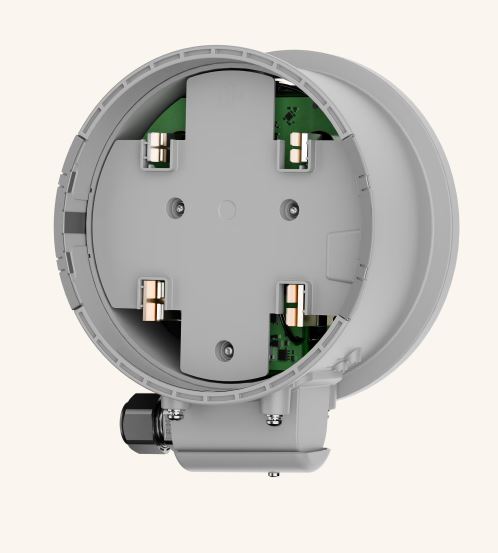

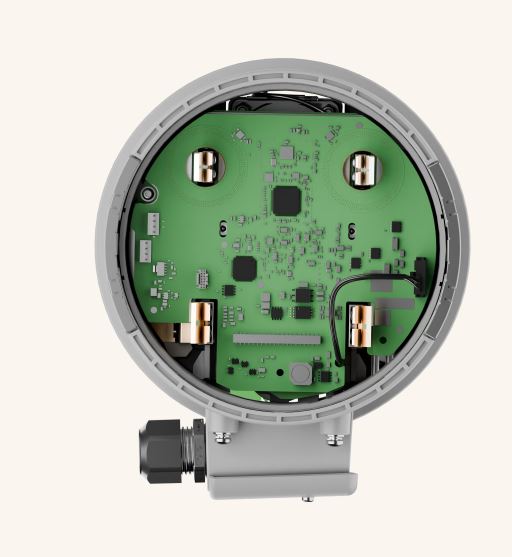

Enphase IQ Meter Collar - MC-200-011-V01

Product Description
$801.00
Maximum quantity available reached.

The Enphase IQ Meter Collar is designed to make whole-home backup accessible for every homeowner. By eliminating the need for a backup subpanel and the associated labor costs of load rewiring, the IQ Meter Collar streamlines installation and ensures seamless integration with the Enphase Energy System.

Features:
Integrates the Microgrid Interconnection Device (MID) for grid-independent operation
Eliminates the need for external consumption CTs for a simpler setup
Compatible with Form 2S meter sockets up to 200 A
UL414 safety certified and UL1741 SA/SB compliant
Provides fault tolerance with redundant power from grid and batteries
Works with IQ Battery 5P and IQ System Controller 3M
Supports IQ Battery 10C with IQ Combiner 6C
Ensures reliable operation with CTRL wiring
Compatible with TC and DG certified CTRL cable in flex conduit
TC-ER listed CTRL cable supports exposed runs
Includes a ½” NPT thread-based junction box with flexible cable management
Features a manual override lever for emergencies or special use cases
Provides push button control to enable or disable firmware operation of MID
Dual LEDs indicate MID relay state, grid power, and system diagnostics
Backed by a 15-year limited warranty and a 20-year design life

Specs:
Dimensions: 6.9 in x 8.1 in x 5.0 in (175 mm x 206 mm x 128 mm)
Mounting options:
Behind utility meter on meter main combo or standalone meter socket
Downstream of the meter or main panel on a standalone meter socket
Enclosure rating: NEMA 3R (Polycarbonate)
Weight: 4 lbs
Supported circuit breakers: Mains: Maximum 200A external
Maximum continuous current: 200A
Maximum short circuit current: 22 kA (with external, load-side, overcurrent protection device.)
Energy meter accuracy: +/- 0.5%
Overvoltage category: Category IV, Service entrance rated
Communication interfaces: CTRL wiring

Documents:
Enphase IQ Meter Collar - MC-200-011-V01 Data Sheet
