OutBack FLEXpower One Pre-Wired 3600W 48V Inverter Charger Off-Grid System - FP1 VFXR3648A-01

Product Description
$5,940.00
Maximum quantity available reached.

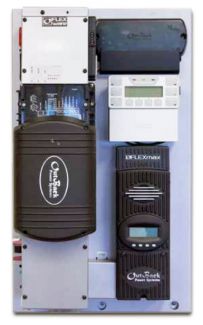

This FlexPower One system is built with a VFXR3648A-01 inverter charger, with 3,600 W 120 VAC 60 Hz output, designed to work with a 48 V nominal battery bank.

Outback's new pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR Series Grid/Hybrid Inverter / Chargers. This means that the most advanced Grid/Hybrid inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value.

Each system is field upgradable to eliminate downtime during critical updates, features seven programmable operating modes - including GridZero and Advacned Battery Charging, and offers remote monitoring and control through any internet enabled device with OPTICS RE.

The FLEXpower ONE is ideal for residential and commercial applications including cabins, vacation homes, farm building, remote communications sites and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint. Additional information can be found in the quick-start guide and spec sheet linked below.

Specs and Features:

  • 3,600 W Output @ 120 VAC 50 Hz
  • Nominal Battery Voltage 48 V
  • Pre-Wired Components: FXR3524A-01 Inverter/Charger 3.6kW FLEXpower One, prewired AC and DC boxes with 120Vac Bypass, NEMA 5-15R Outlet, 175A DC breaker, GFDI, 80 A charge controller breaker, Mate 3-S, HUB 10.3, RTS, FLEXmax 80, FLEXnet DC and surge protector
  • Array power per FM80 Controller (One included with standard FP1 System) 4,000-5,00 W
  • Factory tested, pre-wired and pre-configured systems
  • Fast installation - just hang on the wall with the included bracket and make connections
  • Off-grid and Grid-tied functionality in one flexible system
  • Powerful system in a compact, space-saving footprint
  • Field-upgradable software
  • Ample AC and DC breaker provisions
  • GridZero technology effectively lets users "zero out" the utility grid if enough renewables are present, reducing or even eliminating grid dependence
  • Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
  • All components carry necessary ETL certifications
  • Made in USA

  • Documents:
    Datasheet1
    Datasheet2
