General Specialties Top-of-Pole Mount - UPM 6X Custom

Product Description
$1,276.80
Maximum quantity available reached.

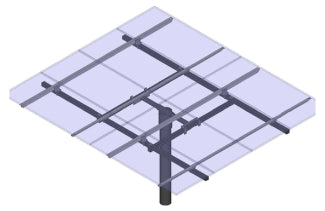

The General Specialties UPM 6X Custom top of pole mount is manufactured to fit on a 5" schedule 40 or 80 post. These mounts are easy to assemble and extremely durable.

The UPM 6X Custom can hold three solar panels of the following sizes:

  • 3 Solar Panels - Size "C" - Panels 210-295W (60 cell) or 39.5" x 65.5" (Sq. Ft. MAX)
  • 3 - Solar Panels - Size "D" - Panels 300W+ (72 cell) or 39" x 77" (20.84 Sq. Ft. MAX)

    Product Features:
    - All post mounts are easily incrementally adjustable from 0 to 87 degrees.
    - Main structure consists of painted, powder coated or galvanized steel tubing and pipe, ASTM 500 B, A120 and A135.
    - Panel mounting rails are 6061 T6 aluminum alloy angle.
    - Designed for 35 lbs/sq foot wind loading.
    - Top quality parts and hardware.
    - Built to last a lifetime.
    - All mounts come with complete easy-to-understand instructions which make for smooth and simple installation.

    Please Note:
    For orders placed online, somebody from our sales team will contact you regarding the following information. When placing an order, specify the mount model and panel size (example: UPM6X Custom "C"). Note the quantity and type of panels you will be using and provide a spec sheet. Mounting post to be supplied by customer and all sizes refer to "A53 Schedule" pipe. To upgrade to a larger sized post than the standard size listed, please inquire. All panels are in LANDSCAPE orientation.

    Documents:
    General Specialties Top-of-Pole Mount - UPM 6X Custom Assembly Instructions
    General Specialties PV Panel Mount Capacity Chart
