MidNite Solar Disconnecting Combiner Enclosure for 4 Strings NEMA Type 3R Aluminum Basic - MNPV4HV-DISCO 3R-BSC

Product Description
$331.00 $459.00
Maximum quantity available reached.

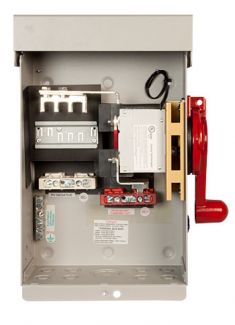

MNPV4HV Disco 3R - Basic Disconnecting Combiner has 80 amp busbars, 100 amp load break rated switch has two poles in series. Pictured with included front cover removed.

  • Nema 3R aluminum enclosure (no rust, won't turn to dust)
  • 90 Deg C terminals
  • See thru deadfront & color coded busbar guards included
  • Meets 2011 NEC
  • Load Break Rated
  • Model number MNPV4HV Disco 3R Basic
  • Does not include: SPD600, fuses, fuse holders or strain reliefs. No positive feedback to Birdhouse.



  •

    Documents:

    Datasheet1

    Datasheet2

    Datasheet3
