Morningstar ProStar 15M Charge Controller PWM 15A 12V-24V with Digital Meter - PS15M

Product Description
$227.30 $240.00
Maximum quantity available reached.

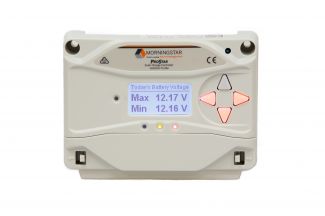

What it is. The Morningstar Prostar 15M with meter is a 15 amp 12/24 volt charge controlle. This little baby not only serves as a excellent solar charge controller, but also as a lighting controller.

Batteries. Battery options continue to grow, and the Prostar 15M keeps up! With 7 standard battery settings, plus custom settings.

Features.

  • 15 A 12/24V Charge and Lighting Controller with LVD (Low Voltage Disconnect) Option
  • Max Array Open Circuit Voltage: 60Voc
  • Battery Voltage Range 10-35 V
  • Datalogging up to 256 days of daily records
  • 8 dip switches for adjusting battery charging
  • 100% Solid State
  • High strength poly carbonate case and extruded aluminum heatsink
  • Optional Accessories Include: Remote Temp Sensor (RTS), Remote Meter (RM-1), Wire Box (PS-MPPT-WB), USB Communications Adapter (UMC-1), Meter Hub (HUB-1), Relay Drive (RD-1) (See related parts to the right)
  • Five Year Warranty

    For additional information, please see spec sheet and user manual linked below.
  • Documents:

    Datasheet1

    Datasheet2
