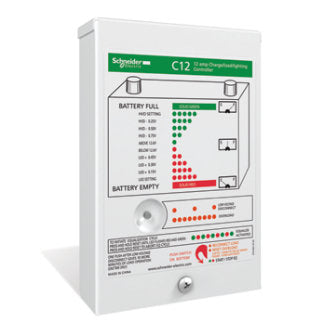

Xantrex C12 Charge Controller - C12

Product Description
$110.00
Maximum quantity available reached.

The Xantrex C12 is a great charge controller. It is designed for 12V applications with a 12A max PV current.

The C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization.

Standard in the C12's load control circuitry are field adjustable low voltage disconnect and reconnect points, along with a five minute low battery disconnect warning.

The Xantrex C12 charge controller also functions as a lighting controller. Lighting run time is adjustable from 2 to 8 hours or can be set from dusk to dawn operation. It is used worldwide in a variety of applications, including remote village lighting systems and automatic outdoor lighting in Africa, Latin America, and Asia. An optional battery temperature sensor ensures precise battery charging regardless of battery temperature fluctuations. See related parts to the right for a Xantrex BTS.

For additional information on the Xantrex C12 charge controller, see spec sheet or user manual below. We also carry larger C-Series controllers which can be found in our Large Charge Controllers section.

Documents:

Datasheet1

Datasheet2
