Magnum Panel Back Plate Single- BP-S

Product Description
$147.50
Maximum quantity available reached.

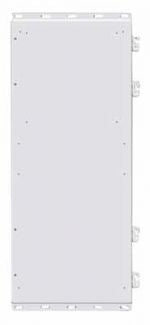

The BP-S is a single-piece, powder-coated steel back plate designed to accommodate a single MP or MPX enclosure, a Magnum inverter, and the inverter hood together; making the complete system appear more seamless. Designed with PEM (i.e. internally threaded) nuts, the backplate is shipped with Hex head bolts for easily mounting the MP enclosure, a Magnum inverter, and the inverter hood.

This backplate also provides the necessary requirement to provide a noncombustible mounting surface required when mounting the inverters on a wall.

For additional information, see installation spec sheet below.



Documents:

Datasheet1
