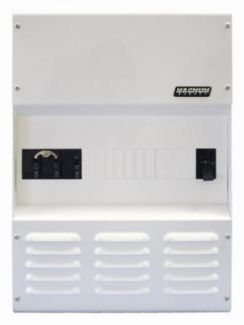

Magnum Panel - MPSL175-30D

Product Description
$1,125.00 $1,300.00
Maximum quantity available reached.

The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system — inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance — into easy-to-install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and used with the optional Router (ME-RTR), the MP will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack).

In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system.

The MPSL –Magnum Panel, Single Enclosure, Low Capacity – is designed to accommodate a maximum of two MS-PAE inverters, stacked in a parallel configuration. The MPSL shown to the right, is with two inverters (sold separately). The first MS-PAE inverter mounts on top of the MPSL enclosure; the second MS-PAE inverter requires an MPX extension enclosure, and there is an optional dual backplate, and an optional router.

FEATURES:
Expandable: Start with the enclosure and just one inverter and in the future expand to multiple inverters, depending on MP model, with ease, using the MPX.
Easy installation: All connections are front-mounted, including AC and DC breakers and the MPX.
Labor saving: Panel is pre-wired for fast installation, saving labor costs.
DC load breakers: Fits either din rail or back-mount DC load breakers.
Convenient knockouts: Knockouts on the side of the enclosure are compatible with most charge controllers.

** 5 YEAR SYSTEM WARRANTY when Magnum Panel and Magnum Inverter are bought together (see Documents Tab above for more info)

Includes: (1) 175A DC breaker, (1) 30A dual pole AC input breaker, (1) 500A/50mV DC shunt, and Inverter AC protection (AC output and AC bypass breaker).

Documents:

Datasheet1

Datasheet2
