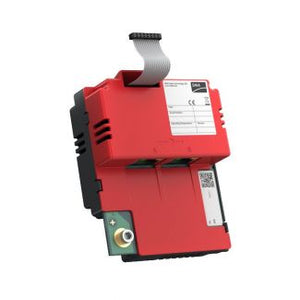

SMA Speedwire Webconnect Piggyback SWPB-10 - SWPB-US-10

Product Description
$220.00
Maximum quantity available reached.

AT THIS TIME, WE HAVE NO STOCK, SUPPLIERS WITH STOCK, OR ESTIMATED LEAD TIMES FOR SMA PRODUCTS.

The Speedwire/Webconnect Piggy-Back is a Speedwire communication interface with Webconnect function for select SMA inverters. Speedwire is a wire-based type of communication based on the Ethernet standard and the+communication protocol SMA Data2+. This enables inverter-optimized 10/100 Mbit data transmission between Speedwire devices in PV plants.

The Webconnect function enables direct data transmission between the inverters of a small-scale plant and the Internet portal Sunny Portal without any additional communication device and for a maximum of four inverters per Sunny Portal plant. For this, a Speedwire/Webconnect Piggy-Back must be installed in each of the inverters. You can access your Sunny Portal plant from any computer with an Internet connection.

The Speedwire/Webconnect Piggy-Back fulfills the following tasks:

  • Set-up of a Speedwire network in small-scale and large-scale PV power plants
  • Data exchange with the Internet portal Sunny Portal:
    - In small-scale PV plants via a router with Internet connection
    - In large-scale PV power plants via the Cluster Controller
  • Data exchange with Sunny Explorer from software version 1.06

    The Speedwire/Webconnect Piggy-Back can only be used in the following inverters with at least the specified firmware version:
  • SB 5000US, SB 6000US, SB 7000US, SB 8000US 1.12 SB 6000TLUS-10, SB 7000TLUS-10, SB 8000TLUS-10, SB 9000TLUS-10, SB 10000TLUS-10 (1.12 Firmware Version)
  • SB 5000US-11, SB 6000US-11, SB 7000US-11, SB 8000US-11 (1.12 Firmware Version)
  • SB 3000US-12, SB 3800US-12, SB 4000US-12 3.04 SB 5000US-12, SB 6000US-12, SB 7000US-12, SB 8000US-12 (2.00 Firmware Version)
  • SB 6000TLUS-12, SB 7000TLUS-12, SB 8000TLUS-12, SB 9000TLUS-12, SB 10000TLUS-12, SB 11000TLUS-12 (1.93 Firmware Version)



  •

    Documents:

    Datasheet1
