Midnite Solar Single E-Panel for Single Schneider XP Plus Inverter System - MNE250XWP-SINGLE

Product Description
$790.00 $950.00
Maximum quantity available reached.

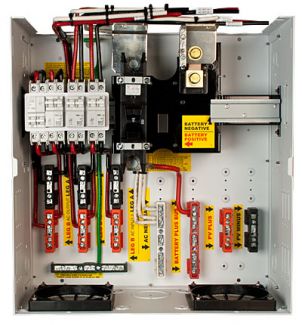

This is a MidNite E-Panel for a single Schneider Electric XW Plus 5548 or 6848 inverter/charger. The XW Plus inverter is mounted directly above the E-Panel for a 16 in wide assembly. Listed by ETL for US & Canada (Pictured with front cover removed. New paint color to match Shneider XW Plus Inverters)

Includes/Features

  • 250A inverter battery breaker
  • 2 separate 60 amp AC inputs for generator and utility
  • 60 amp AC bypass switch
  • Knockouts for up to seven din rail mount DC, DCGFP63 or AC breakers and 12 panel mount or DC-GFP80 breakers.
  • Massive tin plated copper bus bars directly connect to the XW's battery terminals
  • Bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-
  • 500 amp shunt
  • Metal dead front behind the reversible door
  • Charge controllers mount to either side or both sides at once for dual controllers
  • AC bypass can be configured as input & output on/off as well as AC bypass
  • The XW MPPT controller requires no mounting bracket
  • FM60, FM80 and Classic require Right or Left E-Panel charge control mounting brackets. (Right hand bracket furnished standard.)

  • Documents:

    Datasheet1
