PV Label - PHOTOVOLTAIC DC DISCONNECT - 10 Pack

Product Description
$7.50
Maximum quantity available reached.

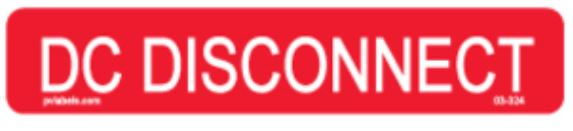

Preprinted Safety labels - "PHOTOVOLTAIC DC DISCONNECT" - 10 Pack

The language and letter height on these Standard Labels is designed to meet NEC 110, NEC 690 and IFC 605 requirements, and have been updated for NEC 2014 compliance. The labels will remain adhered in temperatures down to -40 °F and as high as 175 °F, but must be applied when temperatures are above 50 °F .

Features:
- Placement: Solar DC Disconnect
- NEC 690.14(C)(2) - Place on DC Disconnect
- Premium outdoor rated vinyl label, red with white letters.
- 4" X .75" minimum 3/8" letter height.
- Permanent adhesive.
- Polyester film lamination.
- UL 969 Recognized.

Documents:
PV Labeling White Paper NEC 2011 Section 690 Solar Photovoltaic Systems
