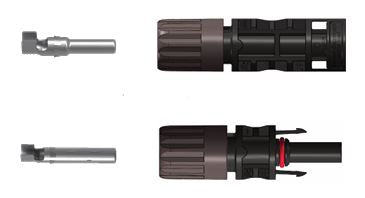

Tlian (Canadian Solar) Male/Female Connector Set - T4-PC-1

Product Description
$5.50
Maximum quantity available reached.

Although spec sheets may note that Tlian connectors found on Canadian Solar modules are "MC4 Compatible", this is not true, according to Multi-Contact (Staubli). When installing modules with T4 connectors it's best to use the same types of connectors to ensure a safe installation.

T4-PC-1 connectors use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency. T4-PC-1 connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 90 °C.

Certifications:
- IEC 62852: TÜV-Rheinland / CE
- UL 6703: CSA
- Compliance with RoHS, REACH and NEC (no locking sleeve required)

Electrical Data:
- Rated Voltage: IEC 1000 V DC & UL 1500 V DC
- Rated Current: 32 A for 4 mm² / 12 AWG / 10 AWG
- Contact Resistance: ≤ 0.25 mΩ
- Pollution Degree: Class Ⅱ
- Protection Class: Class Ⅱ
- Protection Degree: IP68 (when mated)
- Fire Resistance: UL 94-V0
- Temperature Range: - 40 °C ~ + 90 °C
- Rated Impulse Voltage: 12 kV

Technical Documents:
Tlian-T4_Connector-Specs
