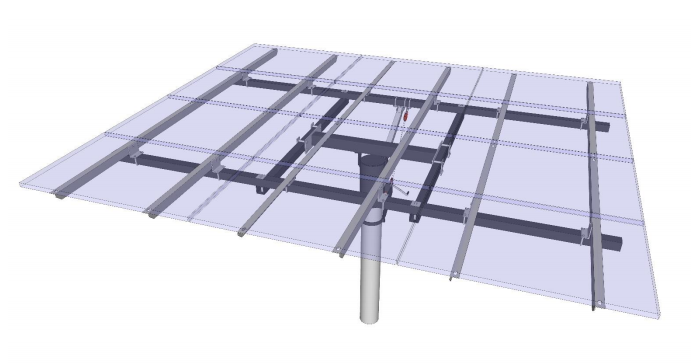

General Specialties UPM 12X HD Custom Top-of-Pole Mount - UPM 12X HD Custom

Product Description
$3,662.00
Maximum quantity available reached.

The General Specialties UPM 12X HD Custom top of pole mount is manufactured to fit on a 8" schedule 80 post (upgrade to 10" post available on request). These mounts are easy to assemble and extremely durable.

The UPM 12X HD Custom can hold eight solar panels of the following size:

  • 8 - Solar Panels - Size "D" - Panels 300W+ (72 cell) or 39" x 77" (20.84 Sq. Ft. MAX)

    Product Features:
    - All post mounts are easily incrementally adjustable from 0 to 87 degrees.
    - Main structure consists of painted, powder coated or galvanized steel tubing and pipe, ASTM 500 B, A120 and A135.
    - Panel mounting rails are 6061 T6 aluminum alloy angle.
    - Designed for 35 lbs/sq foot wind loading.
    - Top quality parts and hardware.
    - Built to last a lifetime.
    - All mounts come with complete easy-to-understand instructions which make for smooth and simple installation.

    Please Note:
    For orders placed online, somebody from our sales team will contact you regarding the following information. When placing an order, specify the mount model and panel size (example: UPM12X HD Custom "D"). Note the quantity and type of panels you will be using and provide a spec sheet. Mounting post to be supplied by customer and all sizes refer to "A53 Schedule" pipe. To upgrade to a larger sized post than the standard size listed, please inquire. All panels are in LANDSCAPE orientation.

    Documents:
    General Specialties Top-of-Pole Mount - UPM 12X HD Custom Assembly Instructions
    General Specialties PV Panel Mount Capacity Chart
