Solartech Solar Panel 40W 12V - SPM040P-BP

Product Description
$134.00
Maximum quantity available reached.

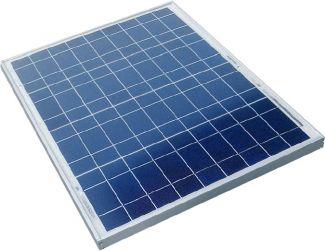

This is a 40W 12V solar panel from the Solartech J-Series product line, and are designed to be a drop in replacement for BP brand solar collectors, with Class 1 Div. 2 (C1D2) hazardous location certification from ETL.

Solartech photovoltaic J-Series Modules are constructed with high efficient polycrystalline solar cells and produce higher output per module than others in it class. This industrial grade module is an industry standard among various industry professionals.

Features:

  • Drop-in replacement for BP panels.
  • Accessible junction box with 4-1/2 knockout for ease of installation.
  • (EVA) with TPT cushions the solar cells within the laminate an ensures the operating characteristics of the solar cells under virtually any climatic condition
  • Rigid anodized aluminum frame and low irontempered glass
  • Easily accessible grounding points on all fourcorners for fast installation
  • Proven junction box technology
  • Proven superior field performance
  • Tight power tolerance
  • Qualifications and Certifications:
    -UL No.: E330673 (UL 1703 certification)
    -TUV No.:0000022551 (TUV certification)
    -IEC No.:C1-ASN07001 (IEC61215)
    -ETL No.:4001057 (ETL Class I ,Division 2,Groups C and D certification)

    For additional information, please see the PDF Spec Sheet linked below.

  • Peak Power (Pmpp) 40 W Cell Type: Poly crystalline
    Peak Power Voltage (Vmpp) 17.3 V Cell Dims: 156mmx48mm
    Peak Power Current (Impp) 2.31 A Length: 25.6 in.
    Open Circuit Voltage (Voc) 21.8 V Width: 21.2 in.
    Short Circuit Current: 2.54 A Depth incl. jbox: 1.97 in.
    Max. System Voltage: 1000 VDC Depth excl. jbox: 1.97 in.
    Weight: 10.78 lbs Nominal Voltage: 12 V
    Box Quantity: 1 Limited Warrantee: 25 Years
    Max Series Fuse: 10 A

    Documents:

    Datasheet1
