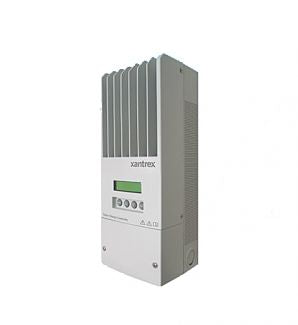

Xantrex Charge Controller XW MPPT60 60A - 865-1030-1

Product Description
$685.00
Maximum quantity available reached.

The latest generation components from Xantrex, the XW MPPT60 Solar Charge Controller is an MPPT controller designed to be used with 12 through 60 Volt battery systems.

Features include two or three-stage charging process, with manual equalization to maximize system performance and maintain expected battery life. Maximum Power Point Tracking (MPPT) to deliver the maximum available power from your PV array to the battery bank. Programmable auxiliary power output. Two-line LCD display to aid system configuration and system monitoring. Includes Battery Temp Sensor to provide automatically temperature-compensated battery charging. And Xanbus which enables the controller to communicate to other Xantrex XW components.

The XW Solar Charge Controller is designed to regulate PV input only, it is not designed to work with wind or hydro generators.

Click on the Spec Sheet below for complete specifications.

Documents:

Datasheet1

Datasheet2
