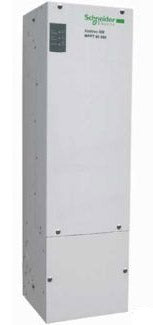

Xantrex Charge Controller XW MPPT80 80A 600 High Voltage - 865-1032

Product Description
$1,599.00
Maximum quantity available reached.

The Xantrex XW MPPT 80 600 charge controller tracks the maximum power point (MPP) of a PV anay to deliver the maximum available current for charging batteries. When charging, the XW MPPT 80 600 regulates the battery voltage and output current based on the amount of energy available from the PV array and present state-of-charge of the battery. The XW MPPT 80 600 accepts PV array voltages up to 600V; significantly reducing system wiring gauges and conduit costs. For additional information including electrical specifications, please see the preliminary data sheet below. Please note: We highly recommend purchasing an XW SCP (System Control Panel) along with this unit, as it will be required for adjusting settings, viewing error messages, and more.

Features:

  • High DC voltage input allows increased installation flexibility and allows long wiring distances from the PV array to the controller
  • Can be used with 24 and 48V battery systems
  • Maximum Power Point Tracking MPPT delivers maximum available power from PV array to battery bank
  • Configurable for positive, negative, and ungrounded PV systems
  • Integrated PV ground fault protection
  • Full output power of 4800W up to 450C without de-rating
  • Configurable Auxiliary output
  • Input over-voltage and under-voltage protection, output over current protection, and back-feed (reverse current) protection
  • Over-temperature protection and power derating when ambient temperatures are high
  • Battery Temperature Sensor included - automatically provides temperature-compensated battery charging
  • Xanbus - enabled network communications protocol allows settings and activity to be communicated to other Xanbus-enabled devices, such as the XW Hybrid lnverter/Charger, the XW System Control Panel (SCP), XW Automatic generator start (XW AGS) and other XW Solar Charge Controllers
  • Can be installed in a stand-alone mode with XW System Control Panel (XW SCP sold separately)
  • Five-Year Warranty
  • Xantrex Part Number : 865-1032

  • Documents:

    Datasheet1

    Datasheet2

    Datasheet3
