SimpliPhi, Phi 3.4, Battery Mounting Bracket

Product Description
$175.00
Maximum quantity available reached.

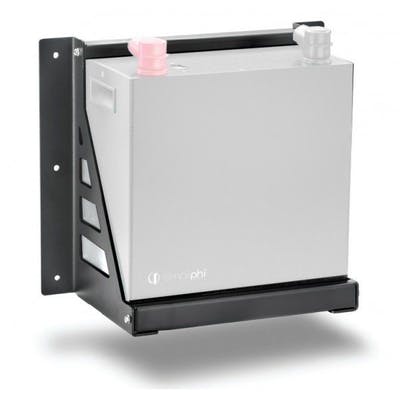

The SimpliPhi Power Mounting Brackets are designed to secure one PHI 3.4™ Battery to a load bearing surface. SimpliPhi Power Batteries can be mounted in practically any orientation (Terminals Up, Down, On Side). The brackets can be mounted directly to a wall or can be arranged on strut channels for ease of positioning. A qualified installer should be familiar with accomplishing this with the appropriate load bearing requirements.

Mounting Bracket Hardware is also included:
1/4-20 x 5/8” Hex Washer Head Machine Screw - Slotted .18-8 Stainless Steel

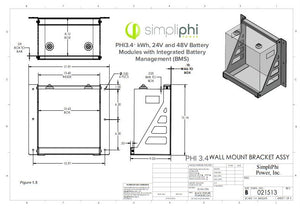

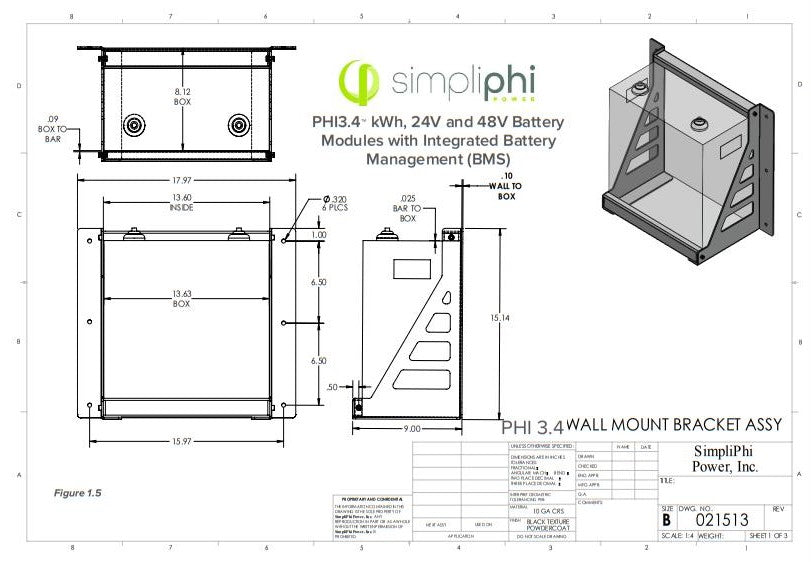

For ease of measuring, arranging and mounting your PHI Battery array, a drawing of the PHI3.4™ Mounting Brackets with dimensions is provided (page 12):
During mechanical testing, individual PHI 3.4™ Mounting Brackets were exposed to 200 pounds each of downward pressure along the bracket’s outer edge. During this test, a deflection of approximately 30 thousandths of an inch was measured. Combined bracket sets can easily bear weights in excess of 400 pounds. Bracket sets are designed to hold one PHI 3.4™ Module, with a weight of 75.5 pounds.

Documents;
Installation Manual
